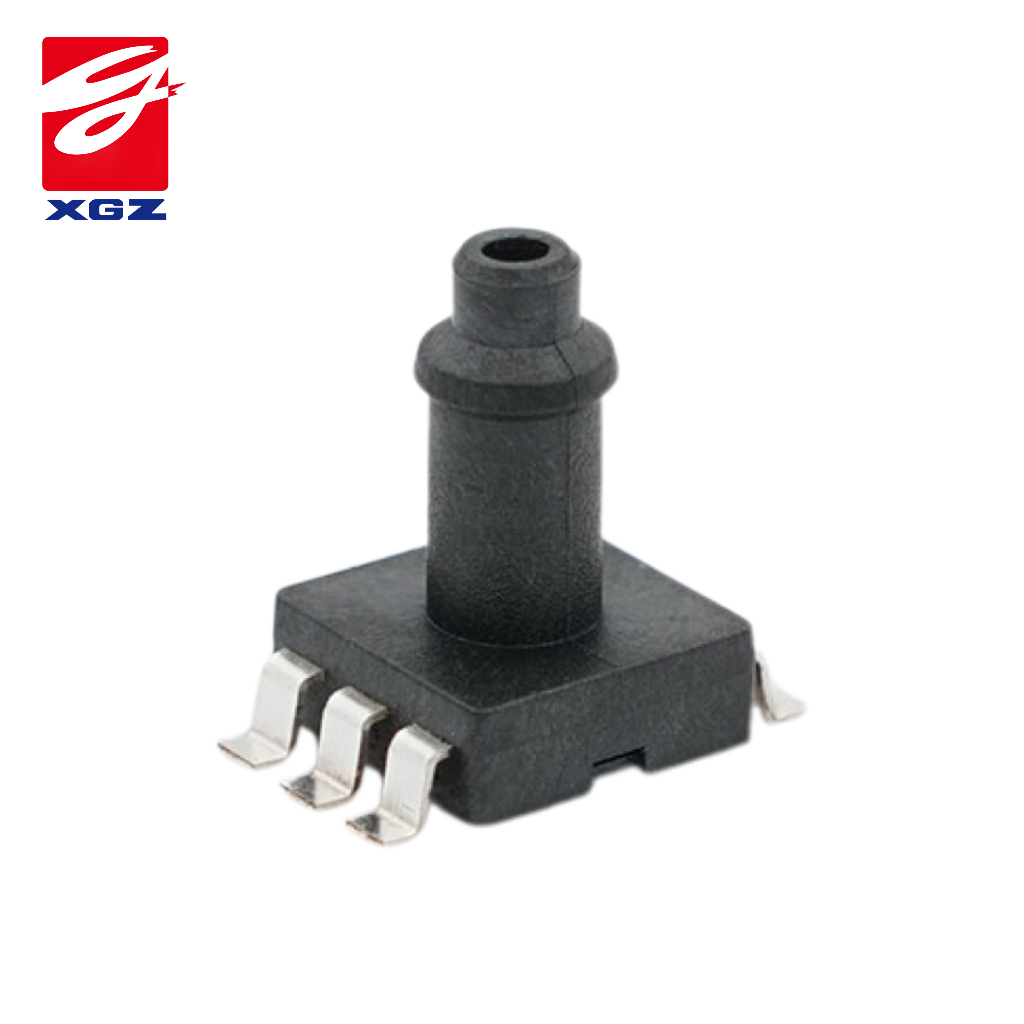

GZP6877A Pressure Sensor
Product Description
The GZP6877A pressure sensor adopts SOP6 packaging form, and integrates MEMS pressure-sensitive chip and ASIC chip internally. Through the ASIC chip, the offset, sensitivity, temperature drift and nonlinearity of the pressure-sensitive chip are digitally compensated, with the power supply voltage as the reference. Test, generate a standard voltage signal after calibration and temperature compensation.
Product Features
Measurement range - 100~350kPa...1000kPa
SOP6 packaging, gauge pressure type
Air nozzle with anti-detachment structure
Suitable for non-corrosive gases
3.3~5.5V power supply
Standard voltage output or proportional voltage output can be selected
Application Field
Ventilator, pulmonary vitameter, negative pressure wound treatment, blood pressure monitoring, sleep asphyxia treatment and other medical fields
Air flow detection, heating ventilation and air conditioning, pneumatic equipment, pressure switches and other industrial fields
Biological science, small household appliances, consumer electronics, sports and fitness equipment, fire fighting equipment, Internet of Things and other fields
Gas flow meter, gas emission, variable air volume regulation and other fields
