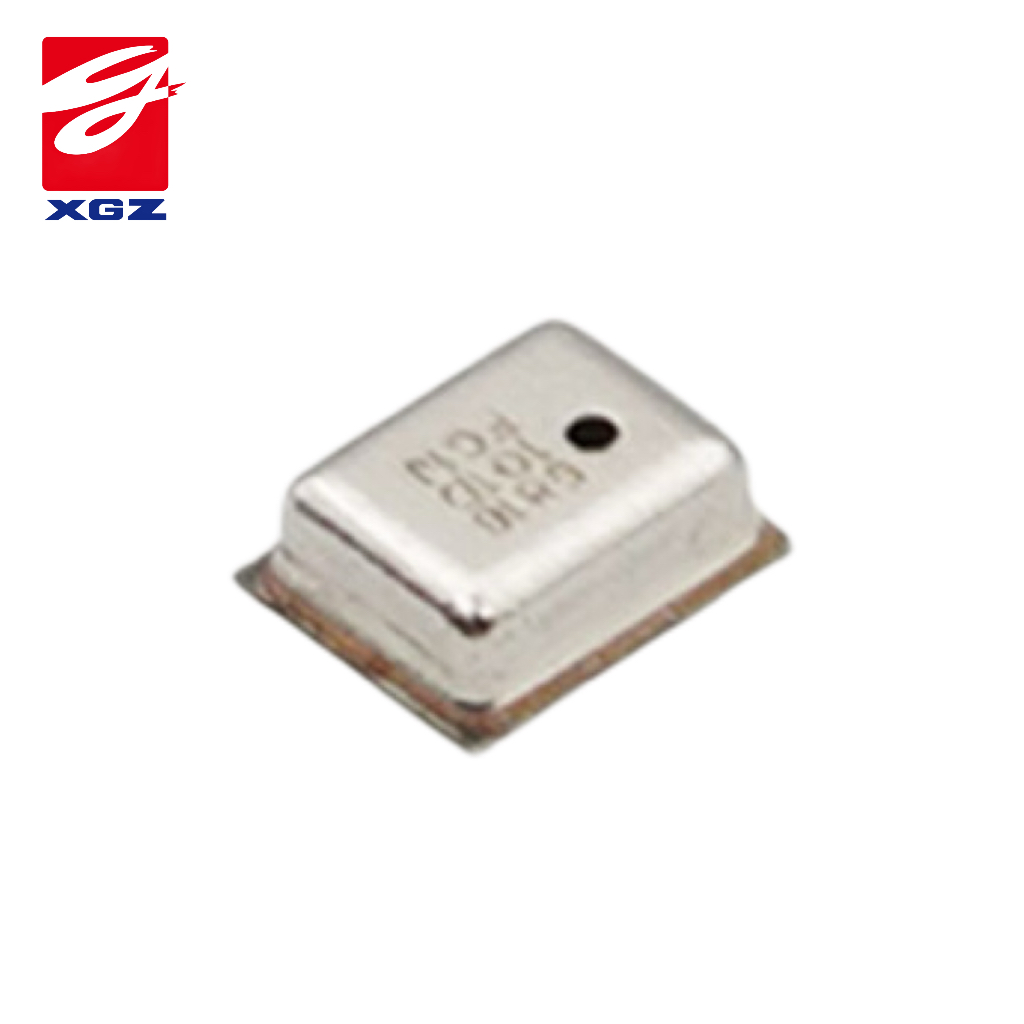

GZP6816D Pressure Sensor
Product Description
GZP6816D is a miniaturized digital pressure sensor with high precision and low current consumption, combining the characteristics of pressure and temperature measurement. The internal signal processor converts the output of pressure and temperature sensor elements into 24-bit and 16-bit data respectively. Each pressure sensor has been calibrated separately and contains a calibration coefficient. In the application, coefficients are used to convert measurement results into real pressure and temperature values. Sensor measurement and calibration coefficients can be obtained through the serial I2C interface.
Product Features
Measurement range 30kPa~110kPa
Absolute pressure type
Power supply voltage: 1.8V～3.6V
Current consumption: <80uA (maximum over-sampling rate once measured)
Dormant current: 0.1uA (25°C)
Absolute pressure accuracy: ±1hPa (8.3m)
Relative pressure accuracy: ±0.12hPa (1m)
I2C communication, wide temperature compensation
Application Field
UAVs, meteorological stations, navigation
Sports wearable equipment
Mobile devices such as mobile phones
Clocks and household appliances
Monitors, oxygen generators and other medical equipment
Portable and fixed pressure gauges
