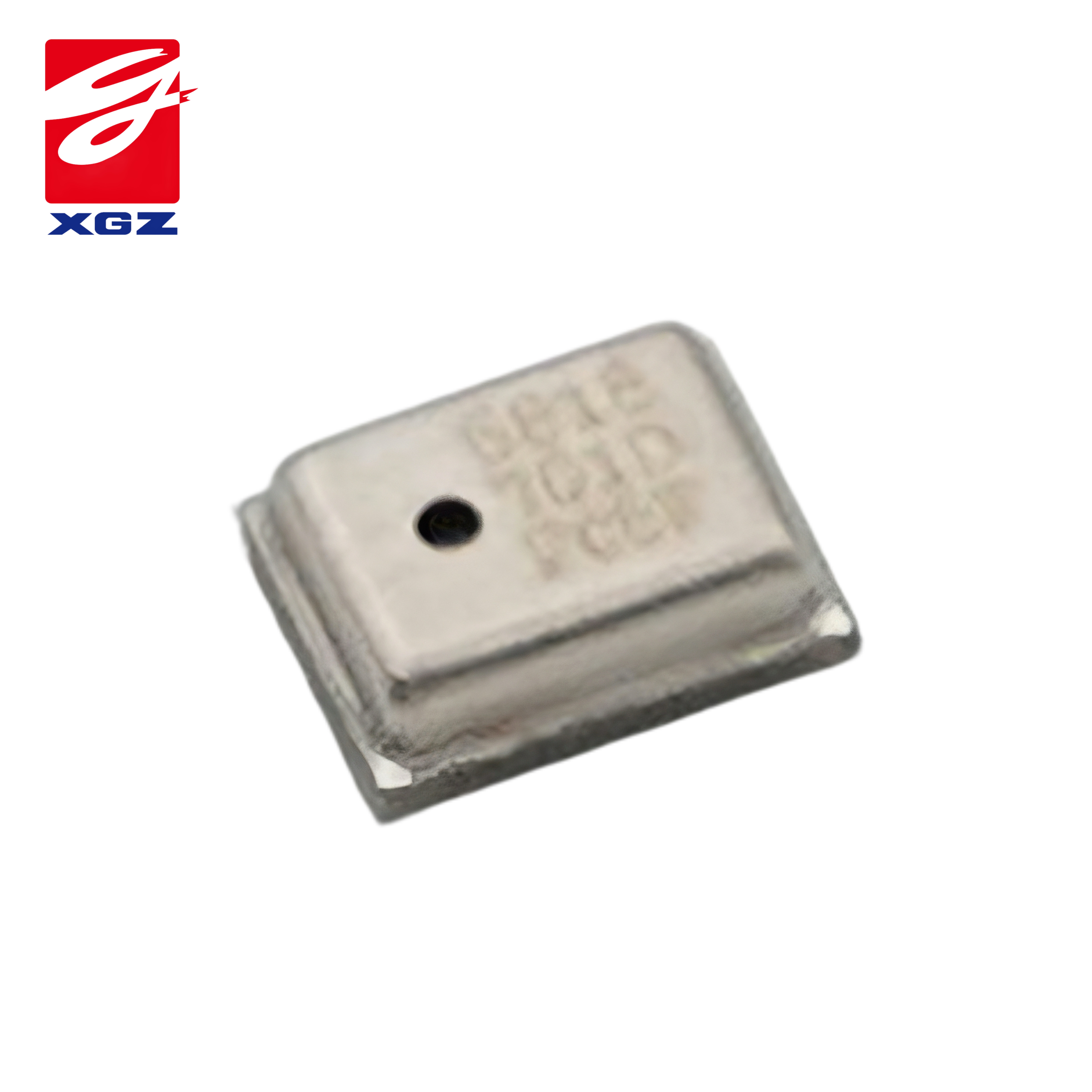

GZP6818D Pressure Sensor
Product Description
The GZP6818D pressure sensor adopts the form of COB packaging, which contains a encapsulated pressure sensor and signal conditioning chip, which digitally compensates for the offset, sensitivity and temperature drift of the sensor. It adopts 21-bit ADC, and the conditioning chip has a built-in temperature sensor, which can output high-precision pressure and temperature values. At the same time, it provides IIC communication protocol interface with strong anti-interference ability. All measurement data have been fully calibrated and compensated for temperature.
Product Features
Wide temperature compensation range measurement range 0kPa~100kPa...2500kPa
Absolute pressure type
IIC Communication
The pressure range can be customized
Multiple working modes are available
Application Field
Altimeter, weather station, navigation
Portable and fixed pressure gauges
Air pump
Tire pressure test
Industrial equipment
Pneumatic control system
Vacuum system
